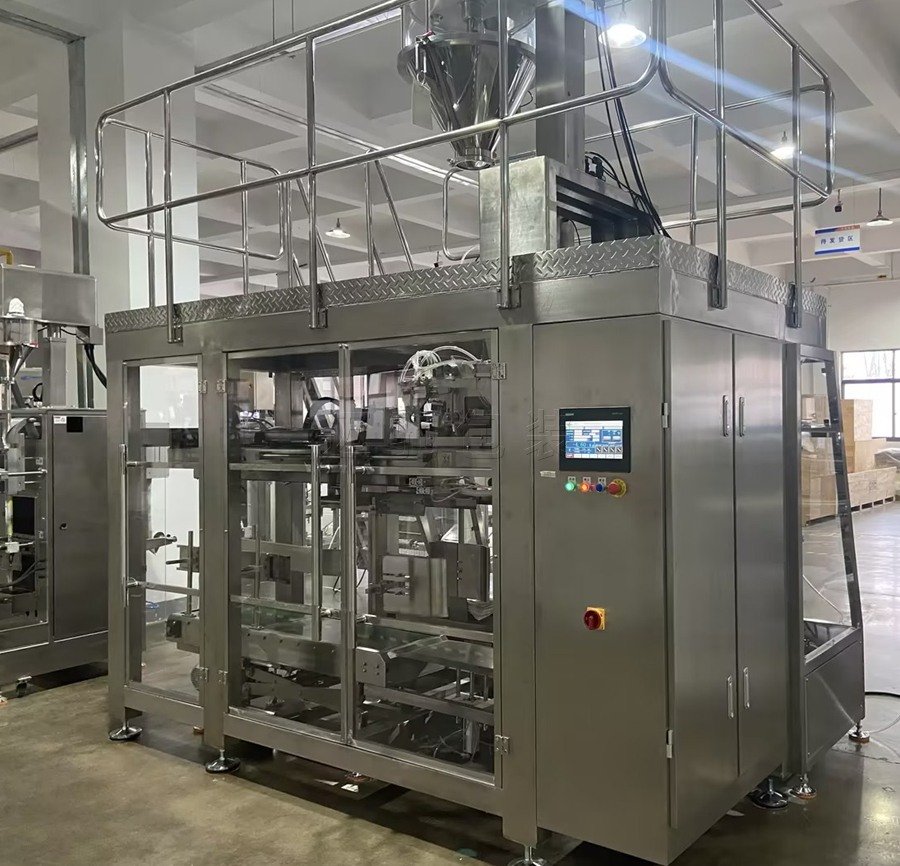

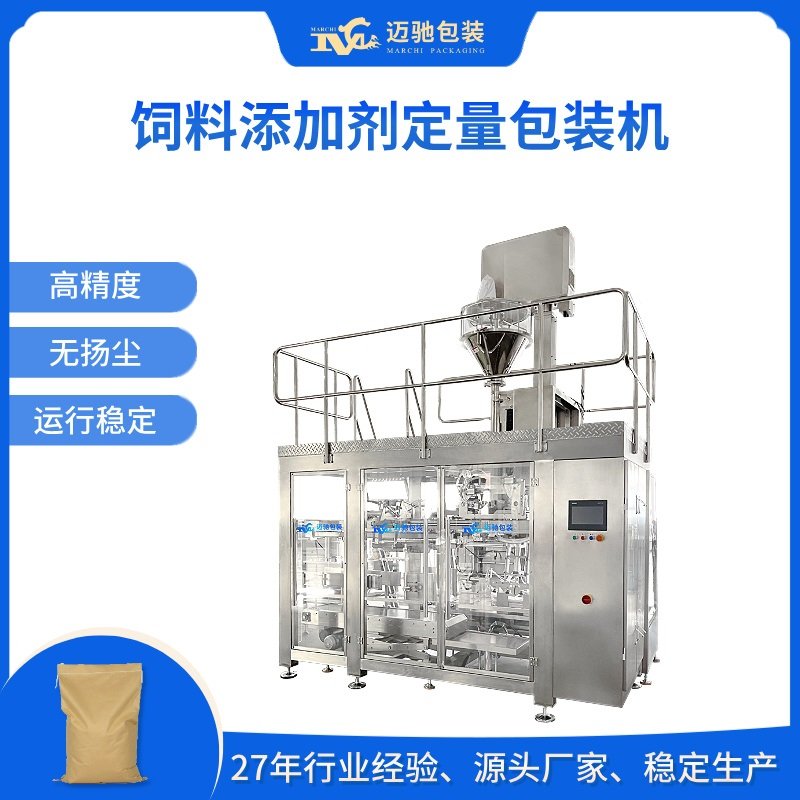

饲料添加剂定量包装机

可包装：

赖氨酸、苏氨酸、蛋氨酸、色氨酸、缬氨酸、精氨酸、胱氨酸、脯氨酸、谷氨酸、苯丙氨酸、组氨酸、甘氨酸、天门冬氨酸、丝氨酸、半胱氨酸、牛磺酸等氨基酸类饲料添加剂；同时也适用于维生素C、维生素E、维生素B族等维生素类添加剂，以及植酸酶、防霉剂、抗氧化剂、酸化剂、酶制剂、香味剂、甜味剂、着色剂、粘合剂等各类饲料添加剂。兽药饲料添加剂领域，该设备可包装恩诺沙星、氟苯尼考、多西环素、阿莫西林、泰乐菌素、磺胺类、喹乙醇、地克珠利、盐霉素、杆菌肽锌、泰妙菌素、伊维菌素、阿苯达唑、地美硝唑等兽药原料及预混剂。此外，设备还适配兽用小苏打粉、兽用氨基酸粉、兽药预混剂、兽用酶制剂、兽用益生菌、驱虫类添加剂、保健类兽药添加剂等，以及硫酸铜、二氧化硅、氢氧化铝等兽药原料粉，包装过程密封防尘，避免物料污染。

设备简介：

适合重量较大的物料包装，稳定性强，适应高负荷工作环境。

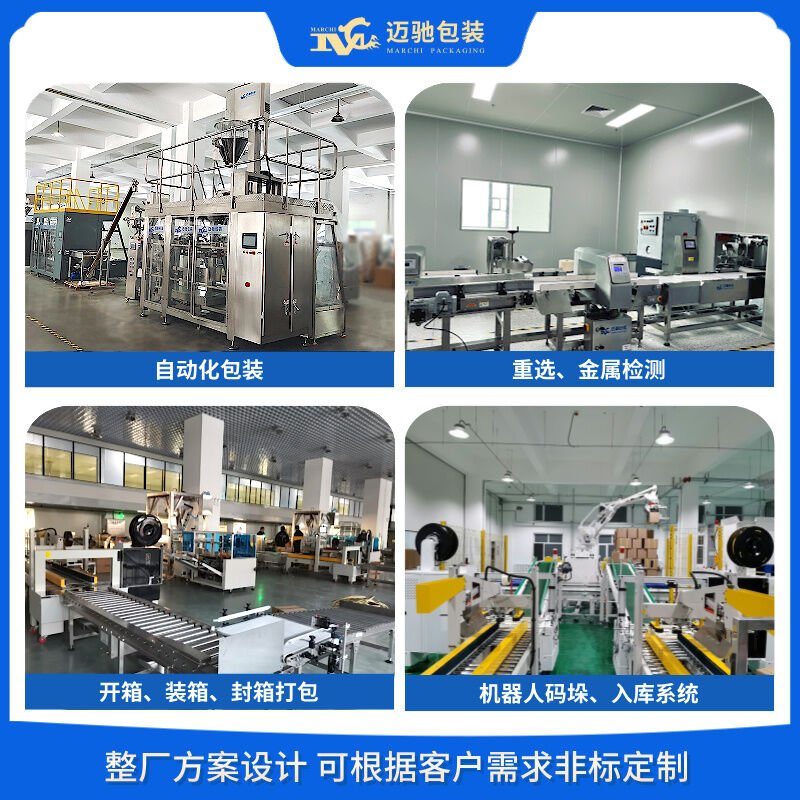

1.自动包装机，可实现自动计量，自动上袋、自动充填、自动热合缝包一体等一系列工作，不需要人工操作。节省人力资源，降低长期成本投入。也可与其它配套设备完成整条流水线作业。

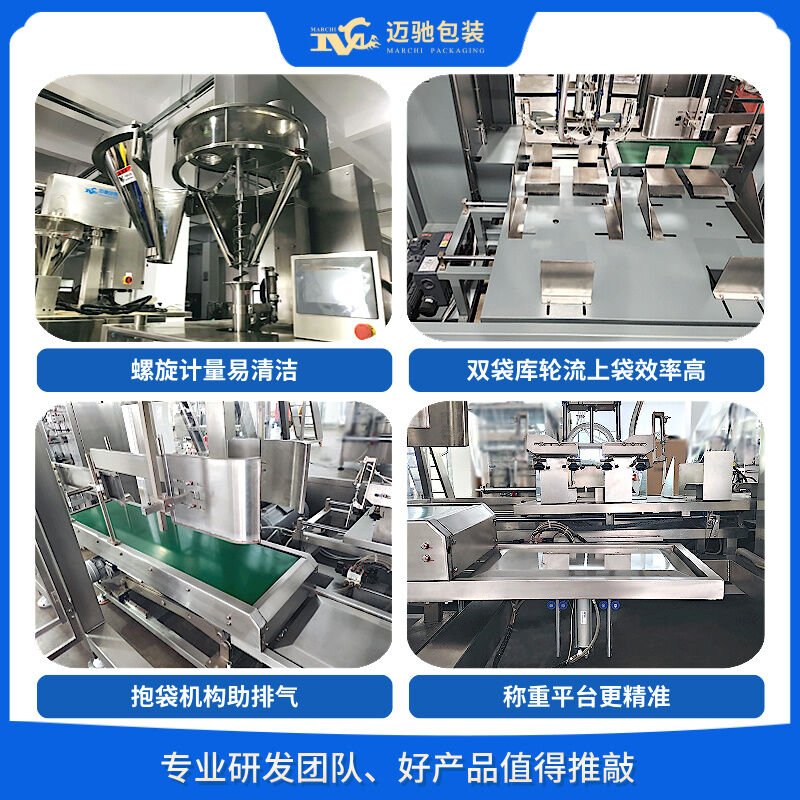

2.称量机采用立式螺杆给料，由单螺杆构成。螺杆由伺服电机直接驱动保证计量的速度和精度。工作时，螺杆根据控制信号旋转供料；称重传感器和称重控制器进行称重信号的处理,并输出重量数据显示及控制信号。

3.本机组由备袋库、取袋理袋装置、上袋机械手、夹袋下料装置、抱袋推动装置、袋口导向装置、真空系统及控制系统等组成；采用从备袋库取袋，袋子对中定位，袋子往前送，袋口定位，预开袋，上袋机械手插刀插入袋口，同时两侧气抓夹住袋口两侧，最后上袋。

设备参数：

设备型号：MCZD-25F

给料方式：单螺旋给料

包装重量(千克)：5～25

包装精度：≤±0.1～0.2%

包装速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

袋子材质：牛皮纸复膜袋、编织袋、塑料袋、编织袋等

Packaging Available:

Lysine, threonine, methionine, tryptophan, valine, arginine, cystine, proline, glutamic acid, phenylalanine, histidine, glycine, aspartic acid, serine, cysteine, taurine and other amino acid feed additives; it is also applicable to vitamin additives such as vitamin C, vitamin E and B vitamins, as well as phytase, mold inhibitor, antioxidant, acidifier, enzyme preparation, flavoring agent, sweetener, colorant, binder and other types of feed additives. In the field of veterinary drug and feed additives, this equipment can package veterinary drug raw materials and premixes including enrofloxacin, florfenicol, doxycycline, amoxicillin, tylosin, sulfonamides, olaquindox, diclazuril, salinomycin, bacitracin zinc, tiamulin, ivermectin, albendazole, dimetridazole and other veterinary drug raw materials and premixes. In addition, the equipment is also suitable for veterinary sodium bicarbonate powder, veterinary amino acid powder, veterinary drug premixes, veterinary enzyme preparations, veterinary probiotics, deworming additives, health-care veterinary drug additives, as well as veterinary raw material powders such as copper sulfate, silicon dioxide and aluminum hydroxide. The packaging process is sealed and dust-proof to avoid material contamination.

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.

Equipment Parameters:

Model: MCZD-25F

Feeding Method: Single screw feeding

Packaging Weight (kg): 5–25

Packaging Accuracy: ≤±0.1–0.2%

Packaging Speed (bags/min): 1.5–2

Bag Size (mm): L: 500–1000

Bag Material: Kraft paper laminated bags, woven bags, plastic bags, woven bags, etc.
