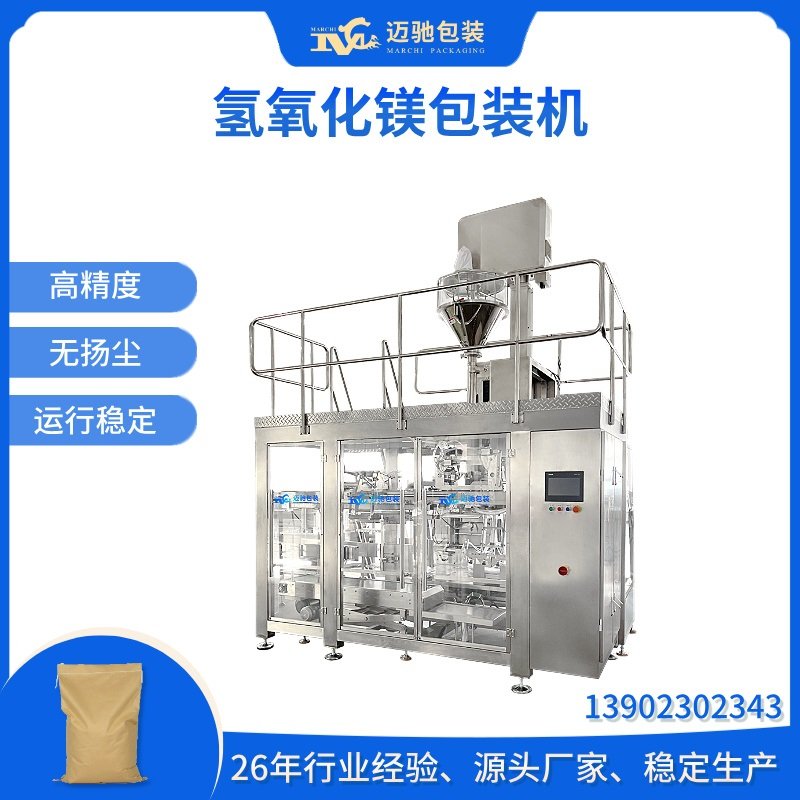

氢氧化镁包装机

可包装：

氢氧化铝、氢氧化镁、硼酸锌、水滑石、高岭土、蒙脱土、氧化镁、氧化锌、复合无机阻燃粉等。

设备简介：

适合重量较大的物料包装，稳定性强，适应高负荷工作环境。

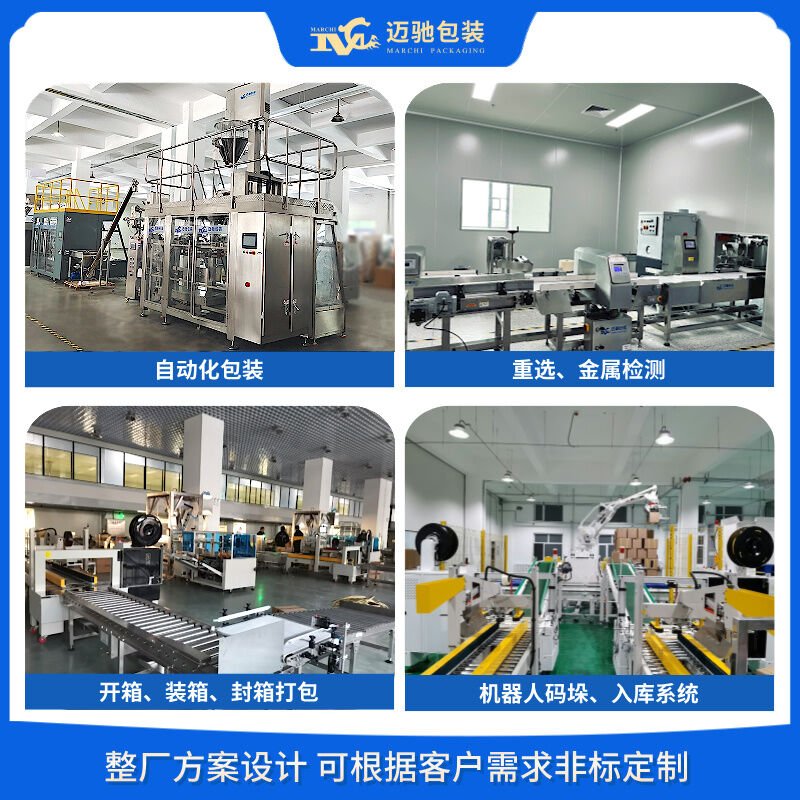

1.自动包装机，可实现自动计量，自动上袋、自动充填、自动热合缝包一体等一系列工作，不需要人工操作。节省人力资源，降低长期成本投入。也可与其它配套设备完成整条流水线作业。

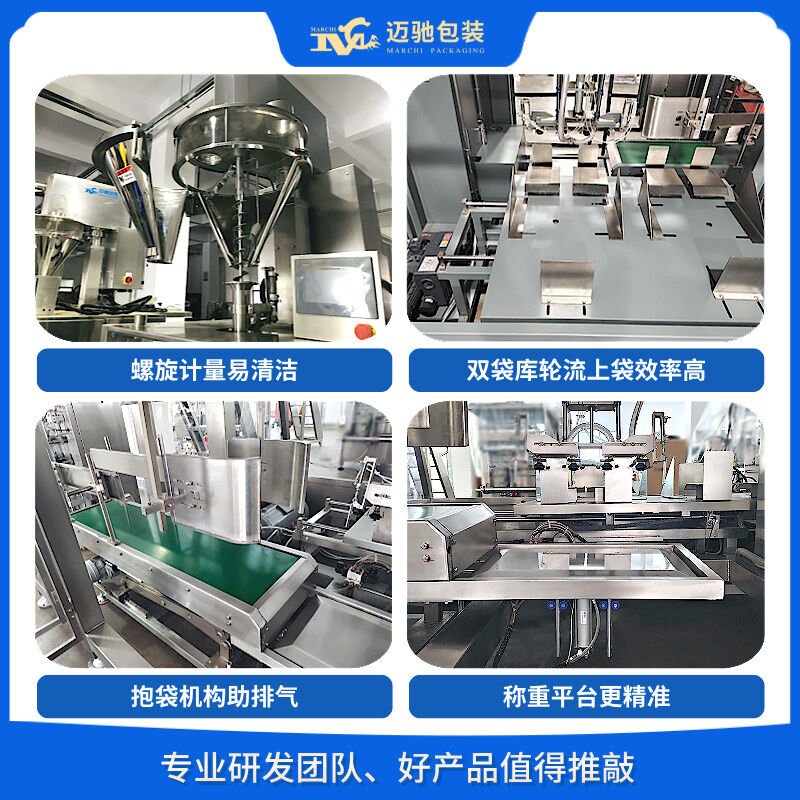

2.称量机采用立式螺杆给料，由单螺杆构成。螺杆由伺服电机直接驱动保证计量的速度和精度。工作时，螺杆根据控制信号旋转供料；称重传感器和称重控制器进行称重信号的处理,并输出重量数据显示及控制信号。

3.本机组由备袋库、取袋理袋装置、上袋机械手、夹袋下料装置、抱袋推动装置、袋口导向装置、真空系统及控制系统等组成；采用从备袋库取袋，袋子对中定位，袋子往前送，袋口定位，预开袋，上袋机械手插刀插入袋口，同时两侧气抓夹住袋口两侧，最后上袋。

设备参数：

设备型号：MCZD-25F

给料方式：单螺旋给料

包装重量(千克)：5～25

包装精度：≤±0.1～0.2%

包装速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

袋子材质：牛皮纸复膜袋、编织袋、塑料袋、编织袋等

Packaging Available:

Aluminum hydroxide, magnesium hydroxide, zinc borate, hydrotalcite, kaolin, montmorillonite, magnesium oxide, zinc oxide, composite inorganic flame retardant powder, etc

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.

Equipment Parameters:

Model: MCZD-25F

Feeding Method: Single screw feeding

Packaging Weight (kg): 5–25

Packaging Accuracy: ≤±0.1–0.2%

Packaging Speed (bags/min): 1.5–2

Bag Size (mm): L: 500–1000

Bag Material: Kraft paper laminated bags, woven bags, plastic bags, woven bags, etc.
