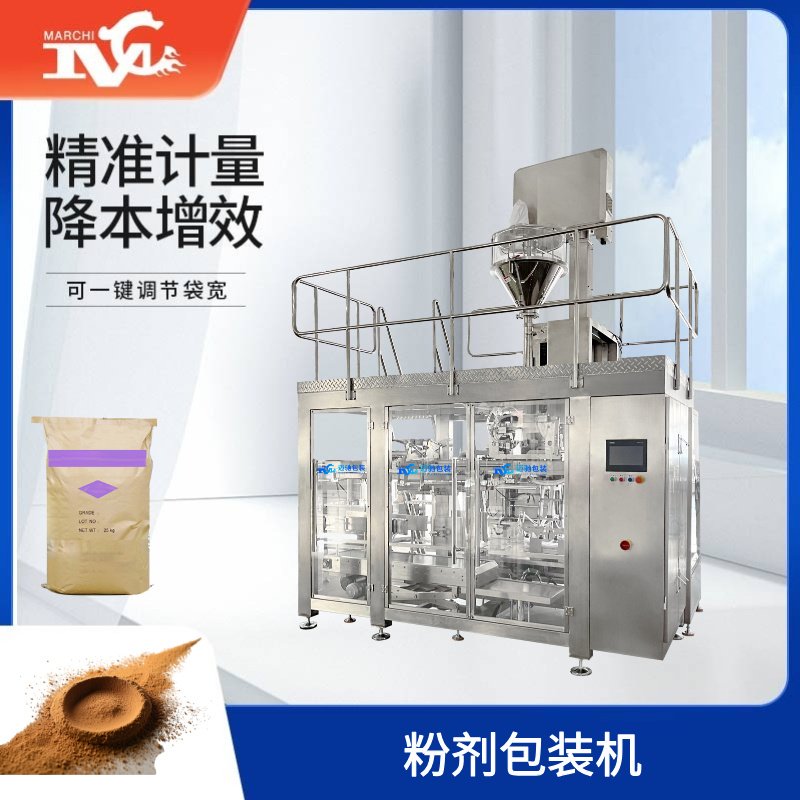

粉剂包装机

可包装：

三七粉、丹参粉、黄芪粉、当归粉、川芎粉、茯苓粉、白术粉、甘草粉、桂枝粉、白芍粉、葛根粉、金银花粉、板蓝根粉、大青叶粉、连翘粉、黄芩粉、黄柏粉、大黄粉、苦参粉、鱼腥草粉、银翘散、清瘟败毒散、麻杏石甘散、荆防败毒散、黄连解毒散、扶正解毒散、小柴胡散、平胃散、五苓散、健胃散、止痢散、催情散、催奶散、肥猪散、激蛋散、喉炎净散、球虫散、鸡痘散、白头翁散、苍术香连散等。

设备简介：

适合重量较大的物料包装，稳定性强，适应高负荷工作环境。

1.自动包装机，可实现自动计量，自动上袋、自动充填、自动热合缝包一体等一系列工作，不需要人工操作。节省人力资源，降低长期成本投入。也可与其它配套设备完成整条流水线作业。

2.称量机采用立式螺杆给料，由单螺杆构成。螺杆由伺服电机直接驱动保证计量的速度和精度。工作时，螺杆根据控制信号旋转供料；称重传感器和称重控制器进行称重信号的处理,并输出重量数据显示及控制信号。

3.本机组由备袋库、取袋理袋装置、上袋机械手、夹袋下料装置、抱袋推动装置、袋口导向装置、真空系统及控制系统等组成；采用从备袋库取袋，袋子对中定位，袋子往前送，袋口定位，预开袋，上袋机械手插刀插入袋口，同时两侧气抓夹住袋口两侧，最后上袋。

设备参数：

设备型号：MCZD-25F

给料方式：单螺旋给料

包装重量(千克)：5～25

包装精度：≤±0.1～0.2%

包装速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

袋子材质：牛皮纸复膜袋、编织袋、塑料袋、编织袋等

Packaging Available:

Notoginseng Powder, Salvia Root Powder, Astragalus Powder, Angelica Sinensis Powder, Ligusticum Chuanxiong Powder, Poria Powder, Atractylodes Powder, Licorice Powder, Cinnamon Twig Powder, White Peony Root Powder, Kudzu Root Powder, Honeysuckle Powder, Isatis Root Powder, Folium Isatidis Powder, Forsythia Powder, Scutellaria Root Powder, Phellodendron Bark Powder, Rhubarb Powder, Sophora Flavescens Powder, Houttuynia Cordata Powder, Yin Qiao San, Qing Wen Bai Du San, Ma Xing Shi Gan San, Jing Fang Bai Du San, Huang Lian Jie Du San, Fu Zheng Jie Du San, Xiao Chai Hu San, Ping Wei San, Wu Ling San, Jian Wei San, Zhi Li San, Cui Qing San, Cui Nai San, Fei Zhu San, Ji Dan San, Hou Yan Jing San, Qiu Chong San, Ji Dou San, Bai Tou Weng San, Cang Zhu Xiang Lian San, etc.

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.

Equipment Parameters:

Model: MCZD-25F

Feeding Method: Single screw feeding

Packaging Weight (kg): 5–25

Packaging Accuracy: ≤±0.1–0.2%

Packaging Speed (bags/min): 1.5–2

Bag Size (mm): L: 500–1000

Bag Material: Kraft paper laminated bags, woven bags, plastic bags, woven bags, etc.
