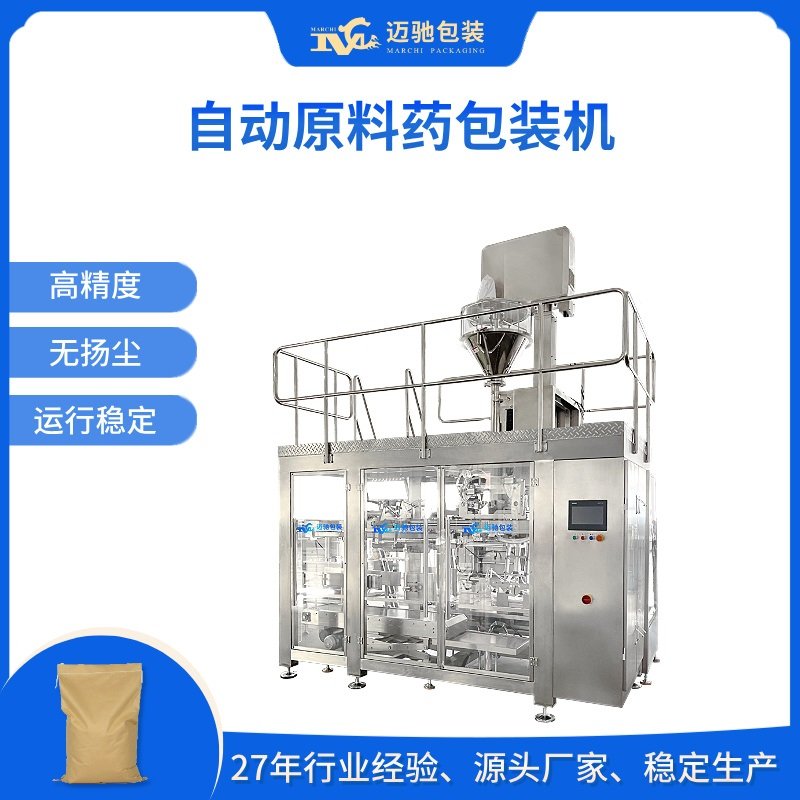

自动原料药包装机

可包装：

柠檬酸, 山梨酸钾, 苯甲酸钠, 维生素C, 葡萄糖, 麦芽糊精, 黄原胶, 明胶, 碳酸氢钠, 阿斯巴甜, 安赛蜜, 药用淀粉, 微晶纤维素, 硬脂酸镁, 甜味剂, 蔗糖粉, 三氯蔗糖, 酶制剂, 碳酸钙, 麦芽糖醇粉, 防腐剂, 脱氢乙酸钠, 增稠剂, 稳定剂, 羧甲基纤维素钠, 瓜尔胶, 魔芋粉, 香精香料, 辣椒粉, 花椒粉, 孜然粉, 水果粉末香精, （香草）粉末, 色素, 柠檬黄, 日落黄, 诱惑红, 胡萝卜素粉, 叶绿素铜钠盐, 营养强化剂, 维生素粉末, 矿物质粉末, 硫酸亚铁粉, 氧化锌粉, 三聚氰酸, 间苯二甲腈, 邻甲基苯甲醚, 苯甲酰氯, 氯乙酸乙酯, 三羟甲基氨基甲烷, 盐酸羟胺, 盐酸氯苯胍, 叔丁基二甲基氯硅烷, 五氯吡啶, 邻氣苯乙酮, 磷酸三(2-氯丙基)酯, 盐酸胍, 水杨醛等。

设备简介：

适合重量较大的物料包装，稳定性强，适应高负荷工作环境。

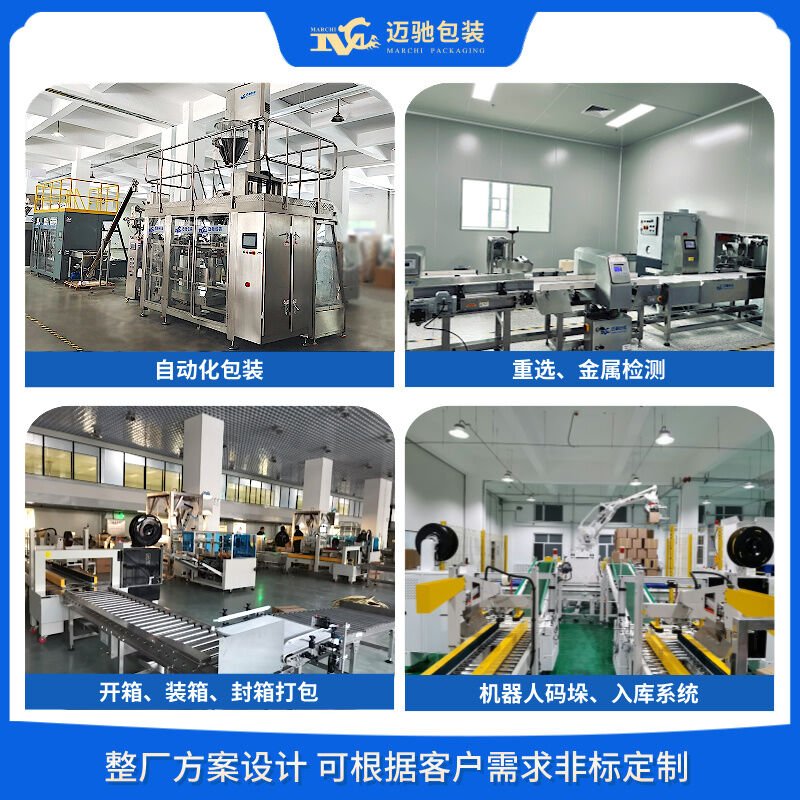

1.自动包装机，可实现自动计量，自动上袋、自动充填、自动热合缝包一体等一系列工作，不需要人工操作。节省人力资源，降低长期成本投入。也可与其它配套设备完成整条流水线作业。

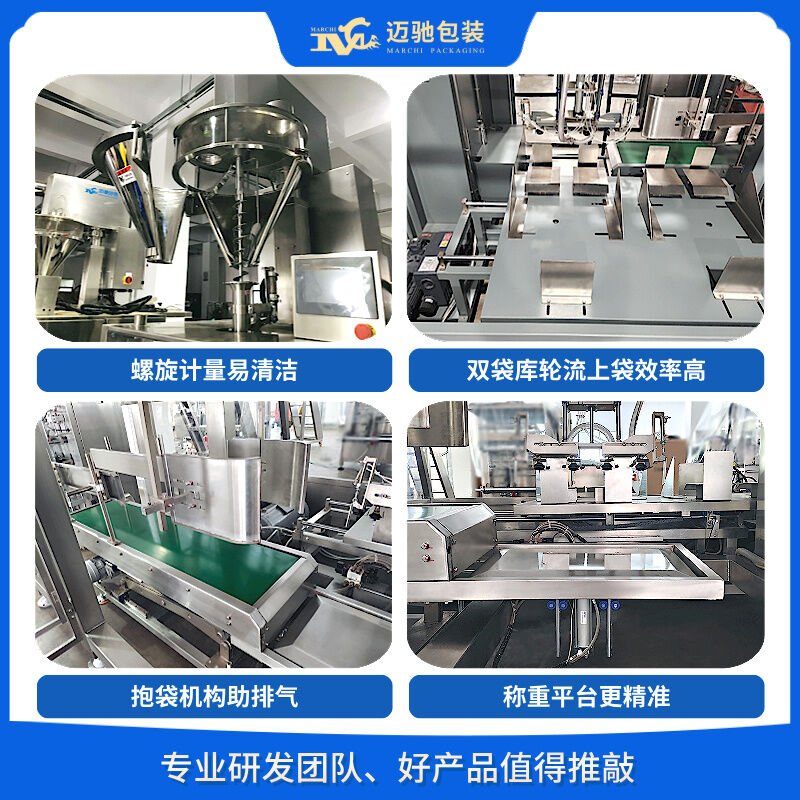

2.称量机采用立式螺杆给料，由单螺杆构成。螺杆由伺服电机直接驱动保证计量的速度和精度。工作时，螺杆根据控制信号旋转供料；称重传感器和称重控制器进行称重信号的处理,并输出重量数据显示及控制信号。

3.本机组由备袋库、取袋理袋装置、上袋机械手、夹袋下料装置、抱袋推动装置、袋口导向装置、真空系统及控制系统等组成；采用从备袋库取袋，袋子对中定位，袋子往前送，袋口定位，预开袋，上袋机械手插刀插入袋口，同时两侧气抓夹住袋口两侧，最后上袋。

设备参数：

设备型号：MCZD-25F

给料方式：单螺旋给料

包装重量(千克)：5～25

包装精度：≤±0.1～0.2%

包装速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

袋子材质：牛皮纸复膜袋、编织袋、塑料袋、编织袋等

Packaging Available:

Citric Acid, Potassium Sorbate, Sodium Benzoate, Vitamin C, Glucose, Maltodextrin, Xanthan Gum, Gelatin, Sodium Bicarbonate, Aspartame, Acesulfame K, Pharmaceutical Starch, Microcrystalline Cellulose, Magnesium Stearate, Sweetener, Sucrose Powder, Sucralose, Enzyme Preparations, Calcium Carbonate, Maltitol Powder, Preservatives, Sodium Dehydroacetate, Thickeners, Stabilizers, Sodium Carboxymethyl Cellulose, Guar Gum, Konjac Powder, Flavors and Fragrances, Chili Powder, Sichuan Pepper Powder, Cumin Powder, Fruit Powder Flavor, Vanilla Powder, Colorants, Tartrazine, Sunset Yellow, Allura Red, Carotene Powder, Sodium Copper Chlorophyllin, Nutritional Enhancers, Vitamin Powder, Mineral Powder, Ferrous Sulfate Powder, Zinc Oxide Powder, Cyanuric Acid, Isophthalonitrile, o-Methylanisole, Benzoyl Chloride, Ethyl Chloroacetate, Tris(hydroxymethyl)aminomethane, Hydroxylamine Hydrochloride, Robenidine Hydrochloride, tert-Butyldimethylsilyl Chloride, Pentachloropyridine, o-Chloroacetophenone, Tris(2-chloropropyl) phosphate, Guanidine Hydrochloride, Salicylaldehyde.

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.

Equipment Parameters:

Model: MCZD-25F

Feeding Method: Single screw feeding

Packaging Weight (kg): 5–25

Packaging Accuracy: ≤±0.1–0.2%

Packaging Speed (bags/min): 1.5–2

Bag Size (mm): L: 500–1000

Bag Material: Kraft paper laminated bags, woven bags, plastic bags, woven bags, etc.
