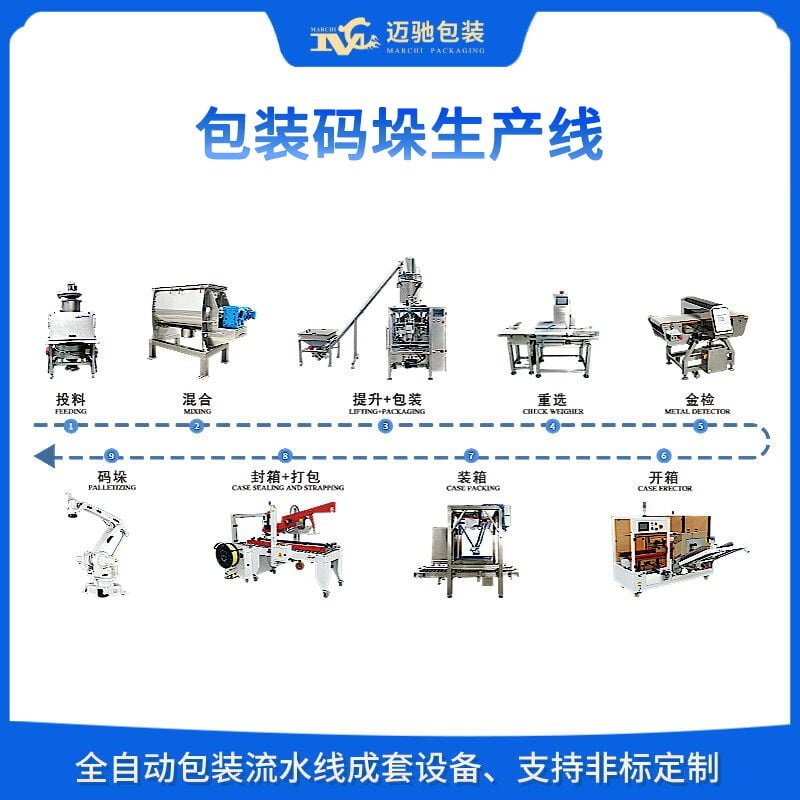

包装码垛生产线

可包装：

黄芪粉、当归粉、三七粉、人参粉、中药提取物粉、丹参粉、党参粉、枸杞粉、山药粉、茯苓粉、甘草粉、川芎粉、抗生素粉、驱虫药粉、维生素预混料、矿物质预混料、磺胺类粉末、泰乐菌素粉、阿莫西林粉、伊维菌素粉、苯乙酸粉、对硝基苯甲酸粉、邻苯二甲酸酐粉、氨基酸中间体、医药合成催化剂粉等。

设备简介：

适合重量较大的物料包装，稳定性强，适应高负荷工作环境。

1.自动包装机，可实现自动计量，自动上袋、自动充填、自动热合缝包一体等一系列工作，不需要人工操作。节省人力资源，降低长期成本投入。也可与其它配套设备完成整条流水线作业。

2.称量机采用立式螺杆给料，由单螺杆构成。螺杆由伺服电机直接驱动保证计量的速度和精度。工作时，螺杆根据控制信号旋转供料；称重传感器和称重控制器进行称重信号的处理,并输出重量数据显示及控制信号。

3.本机组由备袋库、取袋理袋装置、上袋机械手、夹袋下料装置、抱袋推动装置、袋口导向装置、真空系统及控制系统等组成；采用从备袋库取袋，袋子对中定位，袋子往前送，袋口定位，预开袋，上袋机械手插刀插入袋口，同时两侧气抓夹住袋口两侧，最后上袋。

设备参数：

设备型号：MCZD-25F

给料方式：单螺旋给料

包装重量(千克)：5～25

包装精度：≤±0.1～0.2%

包装速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

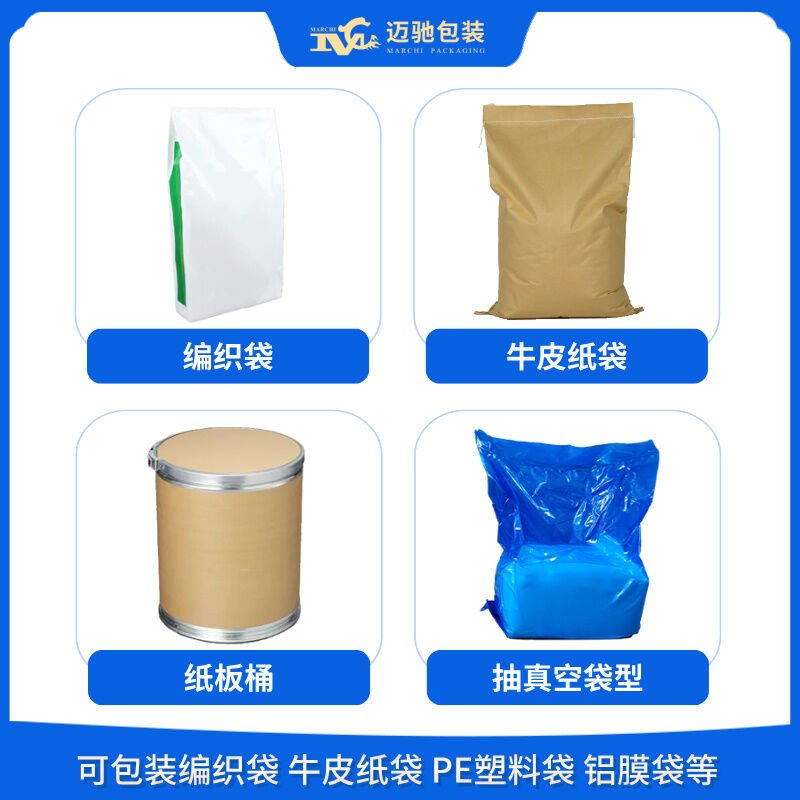

袋子材质：牛皮纸复膜袋、编织袋、塑料袋、编织袋等

Packaging Available:

Astragalus Powder, Angelica Powder, Notoginseng Powder, Ginseng Powder, Traditional Chinese Medicine Extract Powder, Salvia Miltiorrhiza Powder, Codonopsis Powder, Goji Berry Powder, Chinese Yam Powder, Poria Powder, Licorice Powder, Chuanxiong Powder, Antibiotic Powder, Anthelmintic Powder, Vitamin Premix, Mineral Premix, Sulfonamide Powder, Tylosin Powder, Amoxicillin Powder, Ivermectin Powder, Phenylacetic Acid Powder, p-Nitrobenzoic Acid Powder, Phthalic Anhydride Powder, Amino Acid Intermediates, Pharmaceutical Synthesis Catalyst Powder, etc.

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.

Equipment Parameters:

Model: MCZD-25F

Feeding Method: Single screw feeding

Packaging Weight (kg): 5–25

Packaging Accuracy: ≤±0.1–0.2%

Packaging Speed (bags/min): 1.5–2

Bag Size (mm): L: 500–1000

Bag Material: Kraft paper laminated bags, woven bags, plastic bags, woven bags, etc.
