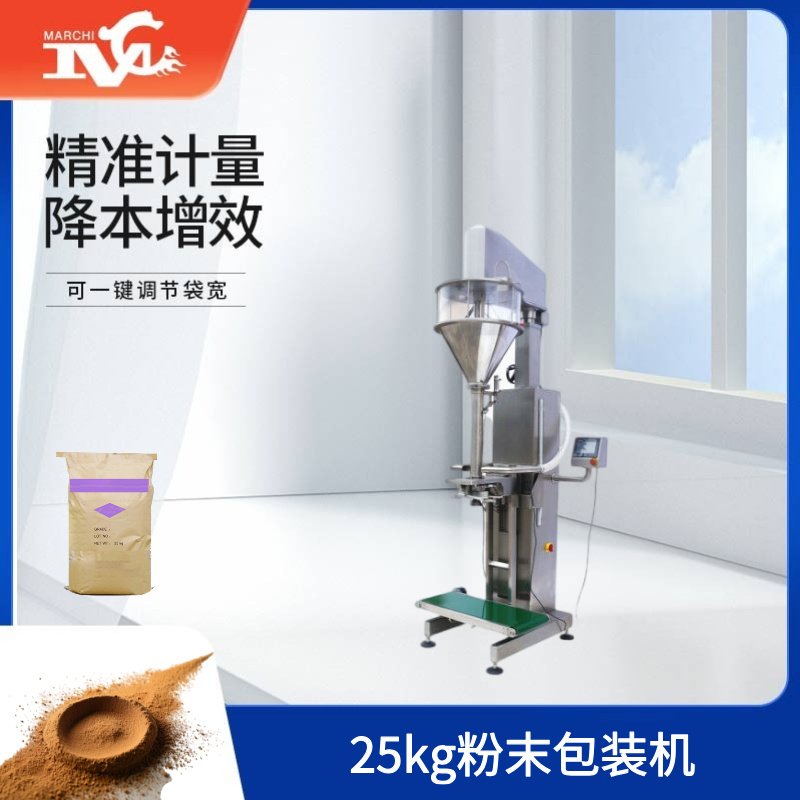

25kg粉末包装机

可包装：

矿粉、石粉、铝土矿粉、石英粉、钙粉、硅粉、石膏粉、煤粉、矿石粉、铁粉、铜粉、铅粉、锌粉、钛粉、石灰粉、矿渣粉、矿砂、重晶石粉、长石粉、铝粉、滑石粉、陶瓷级滑石粉、化妆品级滑石粉、医药食品级滑石粉、造纸级滑石粉、微细滑石粉、超细滑石粉、水镁石粉、尿素、硫酸铵、氯化铵、硝酸铵、碳酸氢铵、过磷酸钙、重过磷酸钙、钙镁磷肥、氯化钾、硫酸钾、硝酸钾、磷酸一铵、磷酸二铵、磷酸二氢钾、硝基复合肥、硫基复合肥、氯基复合肥、缓控释肥、掺混肥、有机无机复混肥、颗粒有机肥、复合微生物颗粒肥、腐殖酸颗粒肥、氨基酸颗粒肥、中微量元素颗粒肥、硫酸锌、硫酸亚铁、硫酸锰、硼砂、钼酸铵等。

设备简介：

该机采用底充式灌装，灌装过程中从底部进行充填，落差小，无扬尘，适用于包装精度要求高的，或密度不均匀的，流动性好的或者流动性差的粉末、小颗粒物料。

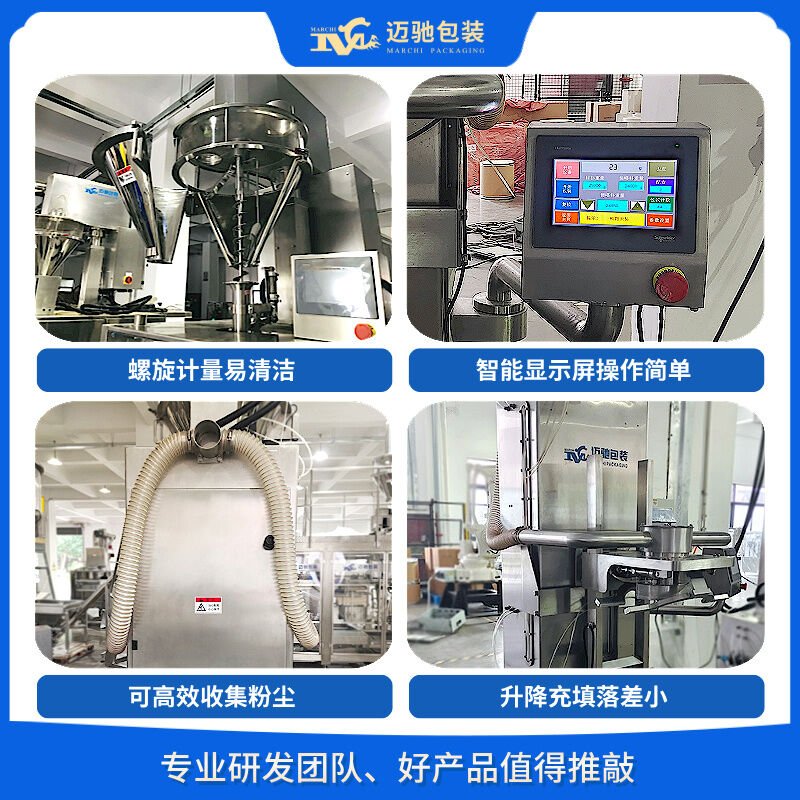

1.全不锈钢结构，组合式或开启式透明料箱，无需工具即可方便拆洗

2.气动夹袋装置和托架装在重量传感器上，根据预先设定的重量进行快速和慢速充填

3.高反应速度的称重系统，保证高精度得以实现

4.PLC控制、触摸屏人机界面显示，操作简便

5.各种产品调整参数配方可储存，备后使用，储存10个配方

包装流程：

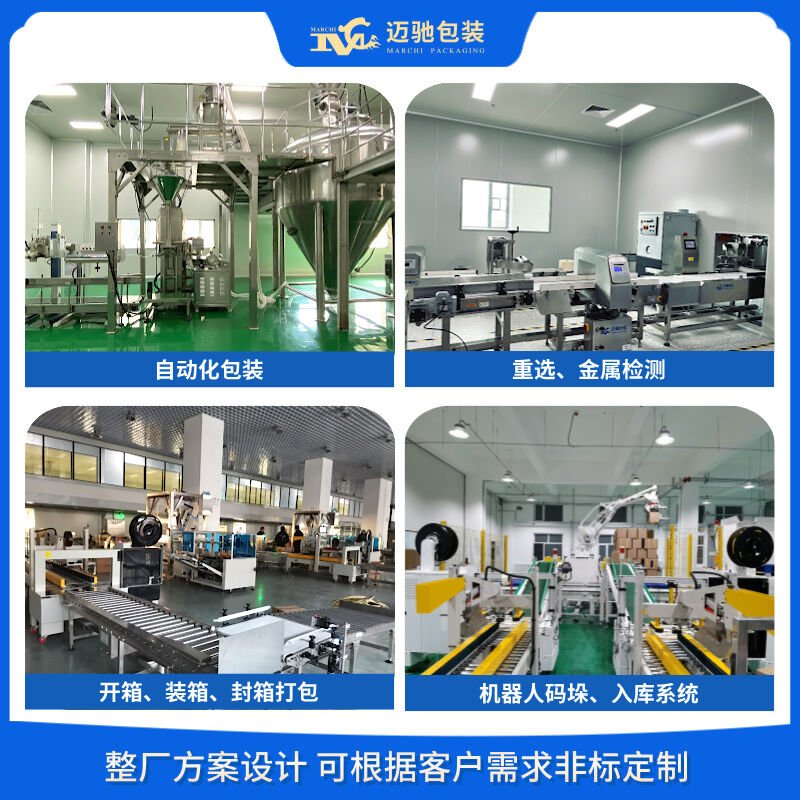

投料→混合→提升→包装→封口缝包机→重选→金检→码垛

设备参数：

设备型号：MC-DLLB-100L

包装重量(千克)：5～25

包装精度：±0.1～0.5%

包装速度(包/分钟)：1～4

电源：3P AC 208～415V 50/60Hz

整机功率(千瓦)：2.87

整机重量(千克)：450

Packaging Available:

Mineral Powder, Stone Powder, Bauxite Powder, Quartz Powder, Calcium Powder, Silicon Powder, Gypsum Powder, Coal Powder, Ore Powder, Iron Powder, Copper Powder, Lead Powder, Zinc Powder, Titanium Powder, Lime Powder, Slag Powder, Mineral Sand, Barite Powder, Feldspar Powder, Aluminum Powder, Talc Powder, Ceramic Grade Talc Powder, Cosmetic Grade Talc Powder, Pharmaceutical and Food Grade Talc Powder, Paper Grade Talc Powder, Microfine Talc Powder, Ultrafine Talc Powder, Magnesite Powder, Urea, Ammonium Sulfate, Ammonium Chloride, Ammonium Nitrate, Ammonium Bicarbonate, Single Superphosphate, Triple Superphosphate, Calcium Magnesium Phosphate Fertilizer, Potassium Chloride, Potassium Sulfate, Potassium Nitrate, Monoammonium Phosphate, Diammonium Phosphate, Monopotassium Phosphate, Nitrogen-Phosphorus-Potassium Compound Fertilizer, Sulfur-Based Compound Fertilizer, Chlorine-Based Compound Fertilizer, Slow-Release Fertilizer, Mixed Fertilizer, Organic-Inorganic Compound Fertilizer, Granular Organic Fertilizer, Composite Microbial Granular Fertilizer, Humic Acid Granular Fertilizer, Amino Acid Granular Fertilizer, Medium and Trace Element Granular Fertilizer, Zinc Sulfate, Ferrous Sulfate, Manganese Sulfate, Borax, Ammonium Molybdate, etc.

Equipment Introduction:

This machine uses a bottom-filling method. During the filling process, it fills from the bottom with minimal drop, no dust, making it suitable for packaging applications that require high accuracy or uneven density, and materials with either good or poor flowability, such as powders and small particles.

Full stainless steel structure, modular or open transparent material hopper, easy to disassemble and clean without tools.

Pneumatic bag-clamping device and bracket mounted on the weight sensor, enabling fast and slow filling based on preset weight.

High-speed responsive weighing system ensures high accuracy.

PLC control with touch screen human-machine interface display for easy operation.

Various product adjustment parameters can be stored for later use, with the ability to store up to 10 formulas.

Packaging Process:

Ingredient Feeding → Mixing → Lifting → Packaging → Sealing and Stitching Machine → Re-weighing → Metal Detection → Palletizing

Equipment Parameters:

Model: MC-DLLB-100L

Packaging Weight (kg): 5～25

Packaging Accuracy: ±0.1～0.5%

Packaging Speed (bags/min): 1～4

Power Supply: 3P AC 208～415V 50/60Hz

Total Power (kW): 2.87

Total Weight (kg): 450
